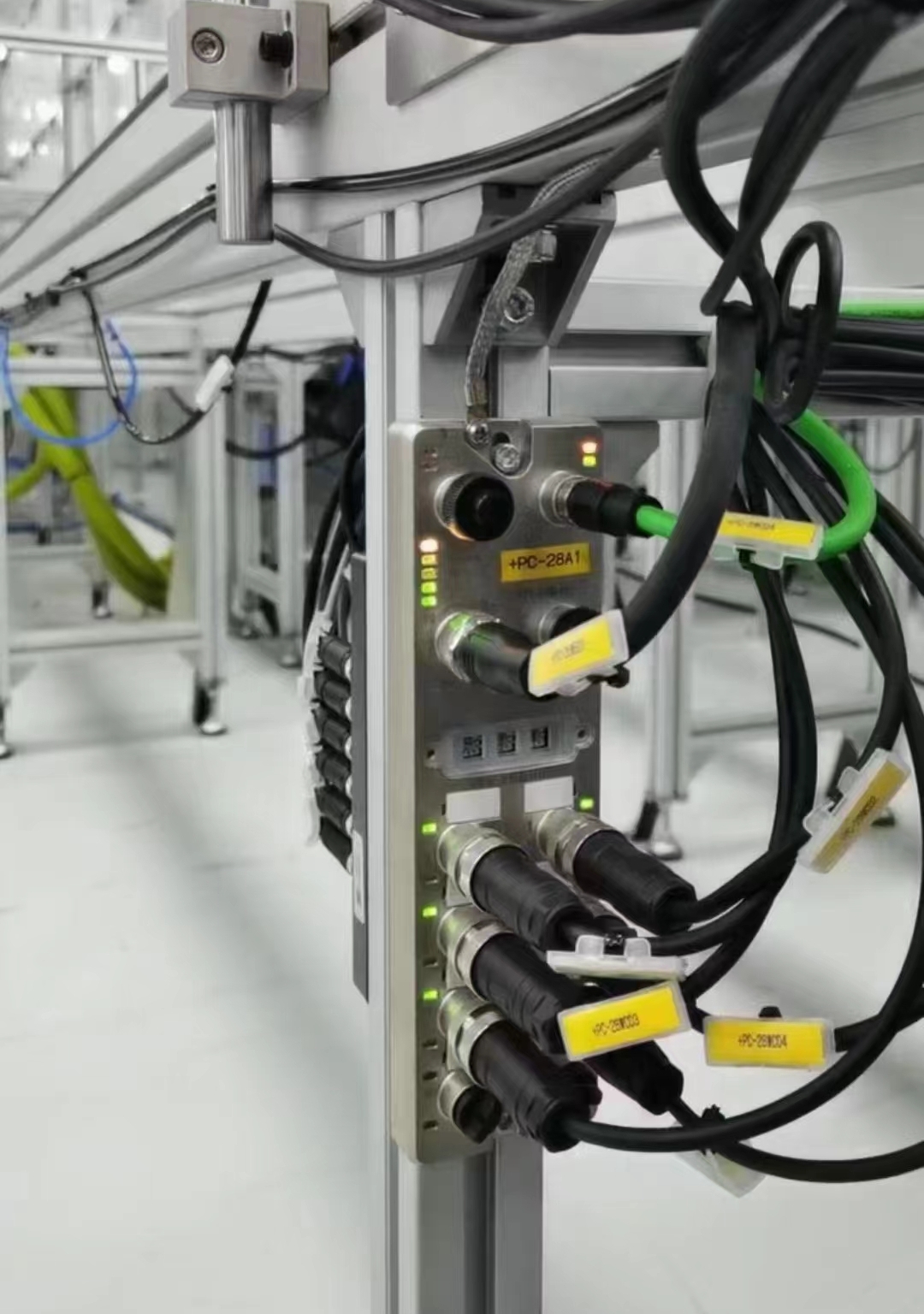

An IO-Link Master is a device that acts as a central hub in an IO-Link communication system. Its main function is to facilitate communication between IO-Link devices (such as sensors and actuators) and higher-level automation systems (usually a PLC (Programmable Logic Controller) or DCS (Distributed Control System)).

The following are the key functions performed by an IO-Link master: IO-Link device communication: An IO-Link master acts as a gateway between IO-Link devices and higher-level automation systems. It establishes a bidirectional communication channel with the IO-Link device, allowing the exchange of data and commands.

Data transfer: IO-Link devices generate data, such as sensor measurements or actuator status, that need to be transferred to automation systems for analysis and control. IO-Link Master collects this data from the connected devices and transmits it to a PLC or DCS via fieldbus or Industrial Ethernet (such as Profinet, Ethernet/IP, CC-Link IEF Basic or EtherCAT).

Parameterization: IO-Link devices often have configurable parameters that determine their behavior or operating characteristics. The IO-Link Master can configure and parameterize these devices. It provides a programming interface or software tool that allows the user to set specific parameters such as measurement ranges, thresholds, timeouts, and other device-specific settings.

Parameter backup/restore: IO-Link Master can also store and manage device parameters. This feature makes it easy to back up and restore device configurations, simplifying device replacement or system maintenance.

Device Diagnostics and Monitoring: The IO-Link master supports diagnostic features that allow users to monitor the health and status of connected IO-Link devices. They can detect faults such as cable breaks, sensor failures or communication errors and provide diagnostic information to automation systems for troubleshooting and preventive maintenance.

Event handling: IO-Link devices can generate events or trigger alarms based on specific conditions or thresholds. The IO-Link master receives these events and transmits them to the automation system to take appropriate action, such as activating an alarm or starting a specific process.

Device identification and replacement: The IO-Link master facilitates device identification and replacement. When a new IO-Link device is connected, the IO-Link master can automatically detect and identify the device, retrieve its device profile and capabilities. This feature allows the system to adapt to changes without manual reconfiguration, simplifying device integration and replacement.

Overall, IO-Link Master plays a vital role in providing seamless and standardized communication between IO-Link devices and higher-level automation systems. It enables efficient data exchange, parameterization, diagnostic monitoring and event processing, helping to improve the flexibility, configurability and reliability of industrial automation systems.
