M8 4Pin、Male 90°、Single end molding PVC non flexible cable、Gray sheathed、63S223-XXX
  • M8 4Pin、Male 90°、Single end molding PVC non flexible cable、Gray sheathed、63S223-XXX
  • M8 4Pin、Male 90°、Single end molding PVC non flexible cable、Gray sheathed、63S223-XXX
  • M8 4Pin、Male 90°、Single end molding PVC non flexible cable、Gray sheathed、63S223-XXX

M8 4Pin、Male 90°、Single end molding PVC non flexible cable、Gray sheathed、63S223-XXX

Ordering code: 63S223-XXX
Series: FCC M324-0000-20-006-VX8425-XXX
M8 4Pin、Male 90°、Single end molding PVC non flexible cable、Gray sheathed、63S223-XXX
  • Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments,  for example: 005=0.5m, 010=1m, 015=1.5m

Parameter Table Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video

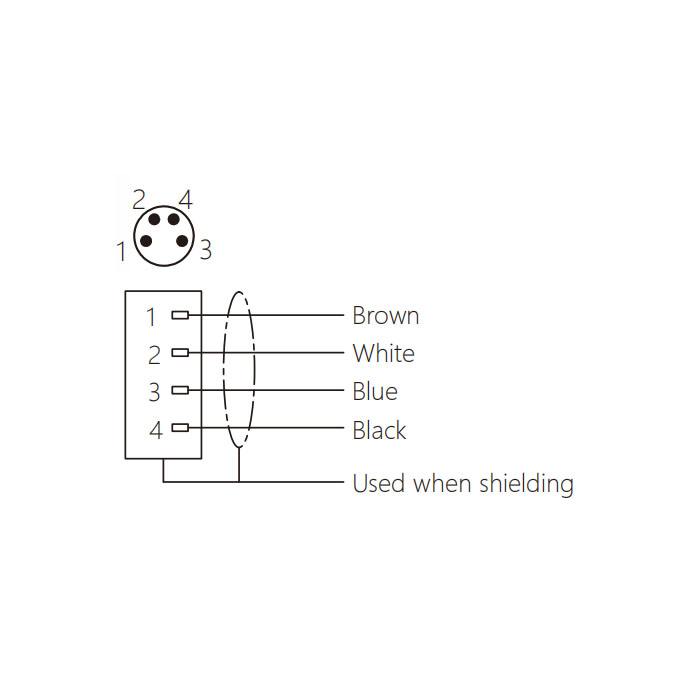

TypeM8 right-angle male,、4 Pin、A-coded
Maximum supply voltage AC UB60 V
Maximum supply voltage DC UB60 V
Rated current2 A
CableMolding
Cable color/MaterialGrey/PVC (Fixed installation)
Number of wires × wire cross-sectional area4×0.25 mm²
Degree of protection as per IEC 60529IP 67
Ambient temperature TaPVC(-25°C~+80°C)


ROHS Certificate

  • Connector 2025-09-16 - RoHS Test Report

    2026-03-12   7.92MB

UL Certificate

  • M8 M12 precast wire + M12 screw connector (E545760) 2025-08-21 - UL Certificate

    2026-03-12   276.29KB

CE Certificate

  • Connectors & Distributors (64105223146704CERT_Bauart) 2024-09-04 - CE Certificate

    2026-03-13   387.84KB

Product 3D

  • 63S223-XXX (FCC M324-0000-20-006-VX8425-XXX) -3D（STEP file)

    2024-02-06   705.27KB

Product 2D

  • 63S223-XXX (FCC M324-0000-20-006-VX8425-XXX) -2D（DWG file)

    2024-02-06   499.73KB
