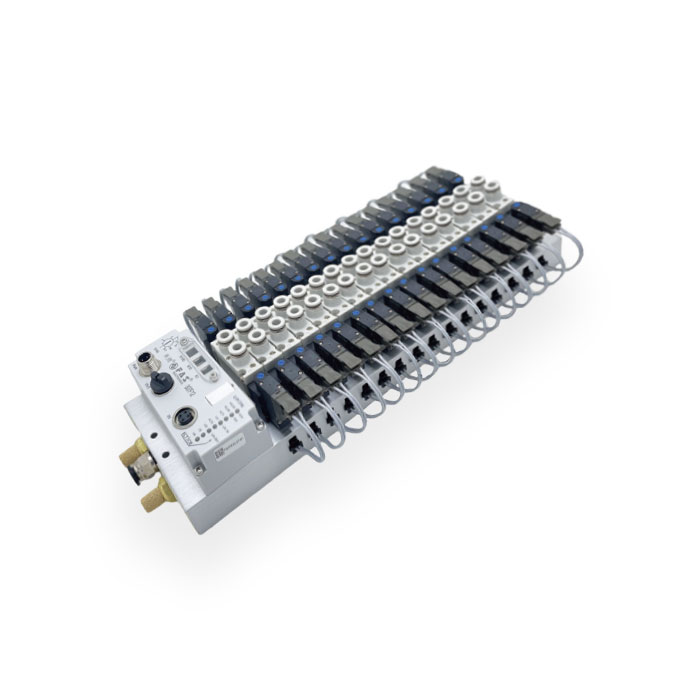

Modbus-RTU communication valve、12 valve positions、FV-XXX-12-S12-MBR

Ordering code:

Part number : FV-XXX-12-S12-MBR

xxx: Indicates the valve brand specification, for example: optional model FV-A75-4-S12-IOL
A71: Indicates that the valve brand and series are AirTAC 7V1 series. Other brands or other series can also be used.
Example: FV-A72-M524-B524-C6-S10-IOL means:
A72——AirTac 7V2 Series Solenoid Valve
M524——M52 (single electric control) 4 (installation 4 positions)
B524——B52 (dual electronic control) 4 (installation 4 positions)
C6——Solenoid valves are uniformly installed with φ6mm quick-connect air pipe joints
S10——One φ10mm main air inlet joint is installed on the manifold
IOL——The communication module is IO-LINK communication module

Collect 询盘

Commonly used package combinations	Modbus-RTU protocol module + manifold board
Communication protocol	Modbus-RTU
Valve position	12
Applicable valve brands	FAS
	FESTO
	AirTac
	SMC

Valve terminal size

L10 series
Consecutive numbers	4F	6F	8F	10F	12F	14F	16F	20F	24F
L1(mm)	124	146	168	190	212	234	256	300	344
L2(mm)	109	131	153	175	197	219	241	285	329
A(mm)	16	16	16	16	16	16	16	16	16
L14 series
Consecutive numbers	4F	6F	8F	10F	12F	14F	16F	20F	24F
L1(mm)	148	180	212	244	276	308	340	404	468
L2(mm)	133	165	197	229	261	293	325	389	453
A(mm)	20	20	20	20	20	20	20	20	20
L18 series
Consecutive numbers	4F	6F	8F	10F	12F	14F	16F	20F	24F
L1(mm)	159	197	235	273	311	349	387	463	539
L2(mm)	144	182	220	258	296	334	372	448	524
A(mm)	20	20	20	20	20	20	20	20	20
L25 series
Consecutive numbers	4F	6F	8F	10F	12F	14F	16F	20F	24F
L1(mm)	178	228	278	328	378
L2(mm)	163	213	263	313	363
A(mm)	20	20	20	20	20

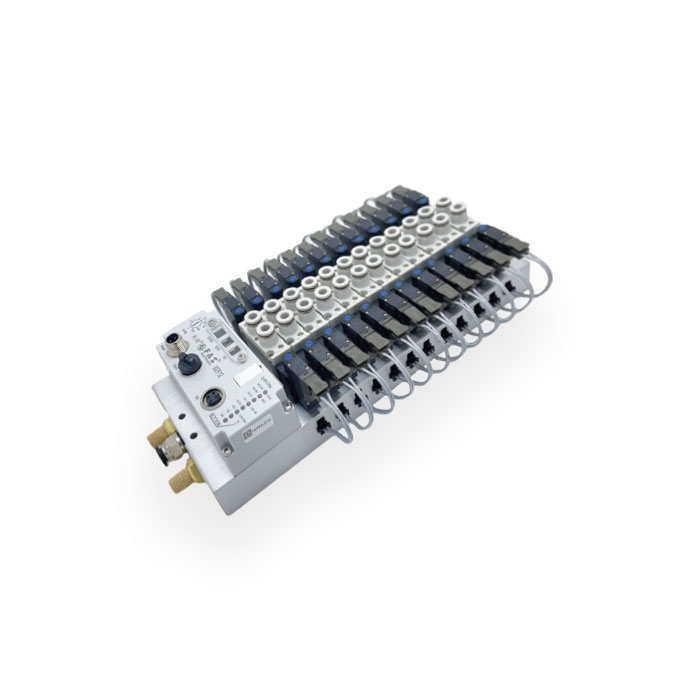

Modbus-RTU communication valve island
