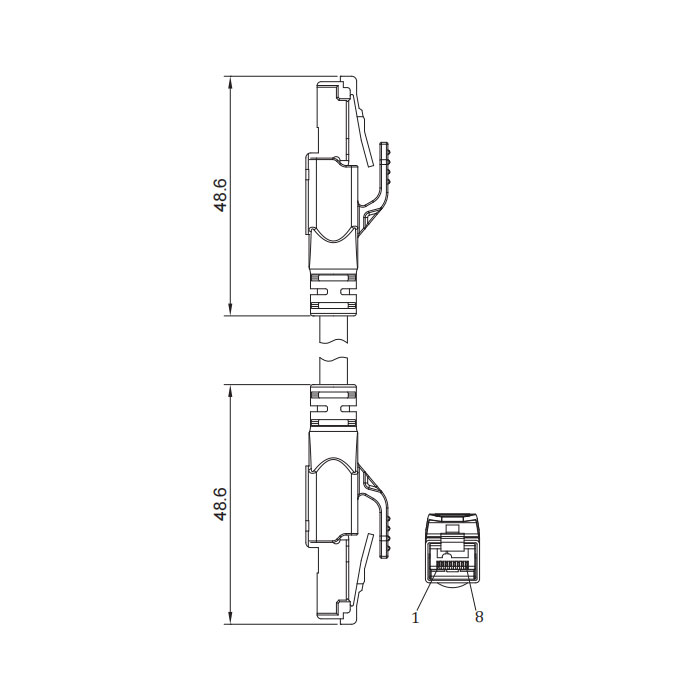

RJ45 Male Straight to RJ45 Male Straight, Dual end pre-cast PVC non-fexible cable、 with shielding, Blue sheath, 0C4449-XXX
  • RJ45 Male Straight to RJ45 Male Straight, Dual end pre-cast PVC non-fexible cable、 with shielding, Blue sheath, 0C4449-XXX
  • RJ45 Male Straight to RJ45 Male Straight, Dual end pre-cast PVC non-fexible cable、 with shielding, Blue sheath, 0C4449-XXX
  • RJ45 Male Straight to RJ45 Male Straight, Dual end pre-cast PVC non-fexible cable、 with shielding, Blue sheath, 0C4449-XXX

RJ45 Male Straight to RJ45 Male Straight, Dual end pre-cast PVC non-fexible cable、 with shielding, Blue sheath, 0C4449-XXX

Ordering code: 0C4449-XXX
Part number : FCC-E838-E838-50-048-VXB08E-XXX
  • Note: xxx = cable length, order can be customised according to the need, cable length in 0.5m increments, example: 005 = 0.5m, 010 = 1m, 015 = 1.5m
Collect Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeRJ45 straight male connector/RJ45 straight male connector
Rated working voltage UB60 V AC/DC
Number of conductors x conductor cross-section4×2x26 AWG
Degree of protection as per IEC 60529IP20/IP20
Cable color/materialBlue/PVC Shield
Ambient temperature Ta-25...+70 °C
