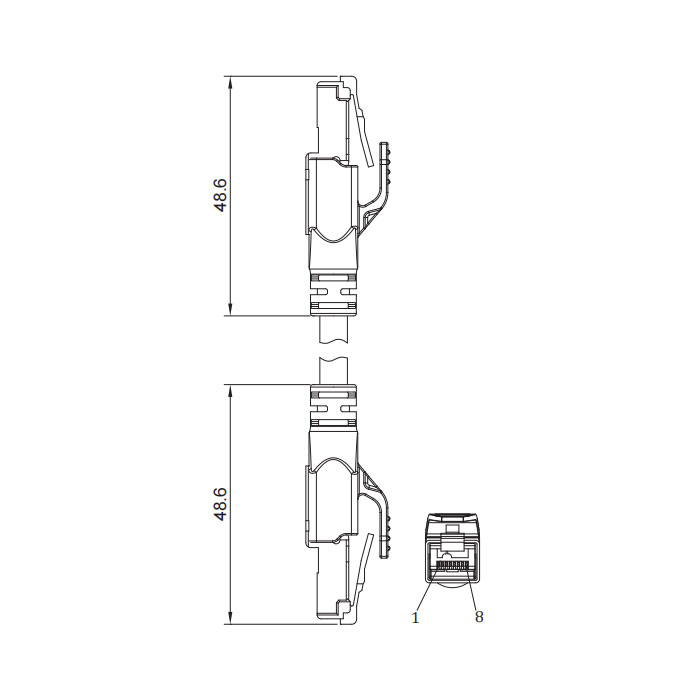

RJ45 male straight to RJ45 male straight、Dual end pre-cast PVC non-Flexible cable、 with shielding、Yellow sheath, 0C4447-XXX

RJ45 male straight to RJ45 male straight、Dual end pre-cast PVC non-Flexible cable、 with shielding、Yellow sheath, 0C4447-XXX

Ordering code: 0C4447-XXX
Part number : FCC-E838-E838-50-048-VXY08E-XXX
  • Remarks: xxx=cable length, can be customised when ordering, cable length in 0.5m increments, example: 005=0.5m, 010=1m, 015=1.5m.
  • Change Note: ‘FCC-E838-E838-50-048-VXYE8E-XXX’ is changed to ‘FCC-E838-E838-50-048-VXY08E-XXX’, please refer to the new information (official website can be downloaded), if any inconvenience, please understand!
Collect Inquiry

Related recommendations

  • Function Parameter
  • Resource Download
  • Related Video
TypeRJ45 straight male/RJ45 straight male
Rated working voltage UB60 V AC/DC
Number of conductors x conductor cross-section4×2x26 AWG
Degree of protection as per IEC 60529IP20/IP20
Cable color/materialYellow/PVC Shield
Ambient temperature Ta-25...+70 °C
