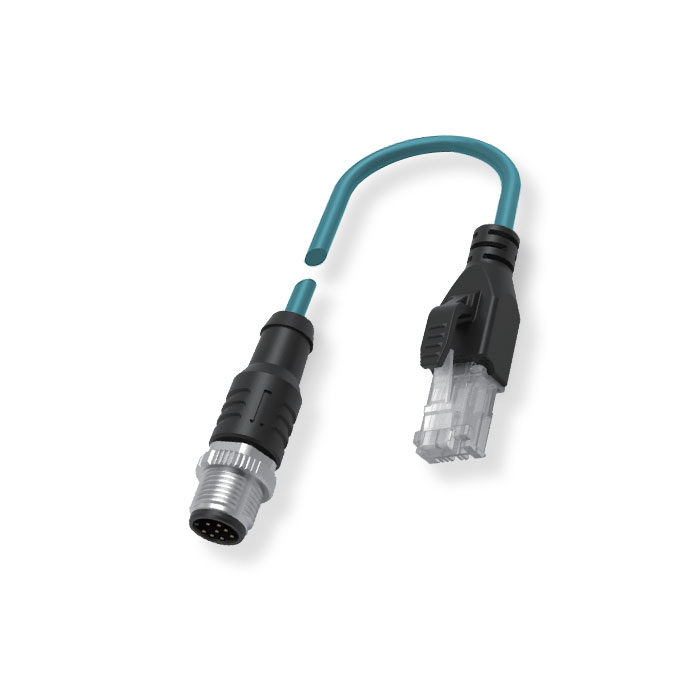

M12 8Pin straight male/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Blue sheath、Ethernet Cat.5e、0C4461-XXX

<>

M12 8Pin straight male/RJ45 male、Dual end pre cast TPE flexible cable、With shielding、Blue sheath、Ethernet Cat.5e、0C4461-XXX

Ordering code: 0C4461-XXX

Part number : FCC-M418-E838-50-048-PHB08E-XXX

Note: xxx = cable length, can be customized according to needs when ordering, cable length in 0.5m increments, for example: 005=0.5m, 010=1m, 015=1.5m

Collect 询盘

Related recommendations

Function Parameter
Resource Download
Related videos

Type	M12 straight male (8 Pin）conversion to RJ45 straight male
Rated working voltage U_B	60 V AC/DC
Cable color/material	Blue/TPE（shield）
Number of conductors x conductor cross-section	4×2×26 AWG
Degree of protection as per IEC 60529	IP67/IP20
Ambient temperature Ta	-25...+70 °C
